KEPLER-T5000

KEPLER-T5000

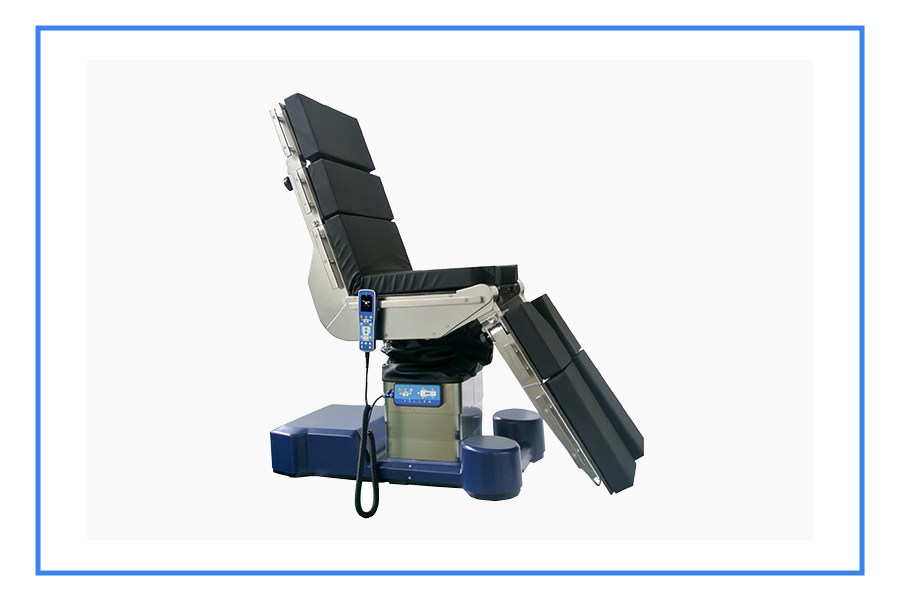

New OR techniques, efficient workflows, digital OR management KEPLER T5000 understands both current and future developments and requirements in daily clinical practice. KEPLER T5000 is a mobile operating table that offers maximum functionality, comfort & maximum flexibility for every surgical discipline. The KEPLER T5000 maximum patient weight capacity has increased to 450 kg/1,000 lbs. all without compromising existing functionalities. Due to its modular design KEPLER T5000 can be universally used making it the ideal solution for both outpatient and inpatient scenarios.

FEATURES AT GLANCE

LOWEST AND HIGHEST TABLETOP

With lowest and highest table height adjustment range of 570mm-990mm, satisfied Neuro, Spine & Ophthalmic surgery, and other disciplines.

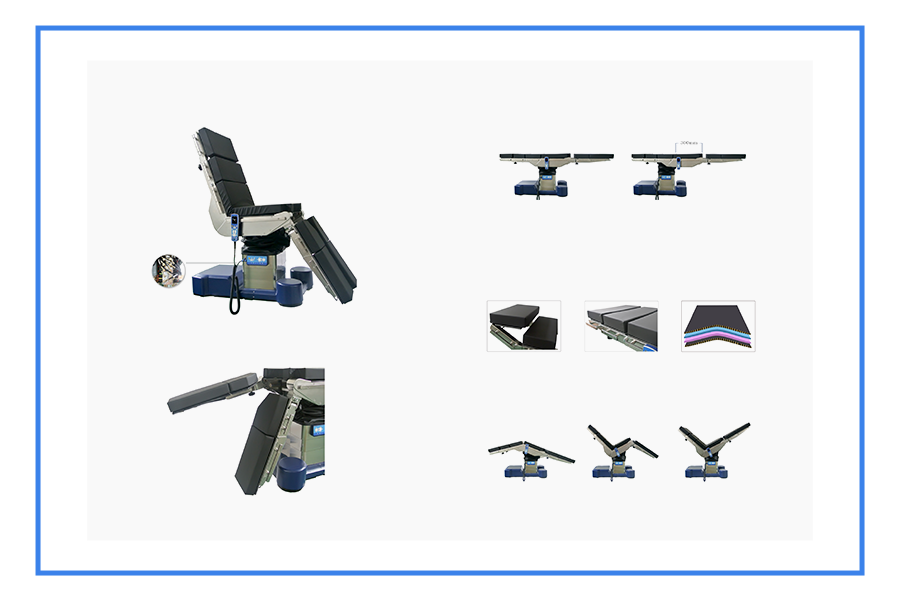

TABLE CHARACTERISTICS

  • Dual joint head plate
  • Upper back section design for various surgical discipline need
  • Motorized longitudinal slide for C arm
  • Motorized leg plate adjustment up and down (synchronous adjustment and individual adjustment)
  • 4-part leg plate with spreadable joints

EXTREME WEIGHT CAPACITY

 KEPLER-T5000 offers the highest level of safety and of stability, with a maximum weight capacity of 464 kg the table is designed to accommodate the Lightest to the heaviest surgical patient in any surgery position ideally suitable for bariatric patients

INTELLIGENT ANTI-COLLISION SYSTEM

The intelligent sensor in the connection of each plate that can recognize each type of the table component and match the anti-collision data automatically to avoid table components collision

LARGE LONGITUDINAL SLIDE

With longitudinal slide up to 320mm KEPLER-T5000 enables optimum access with the C arm without reposition the patient for imaging purpose, ideally suitable for such as cardiovascular surgery. By the way, the carbon fiber table top (optional) provides excellent imaging quality

MULTI LAYER DECOMPRESSION PAD

With a special foam core pad and multilayer design, KEPLER-T5000 provides excellent pressure distribution significantly the main cause of decubitus reduces the rate of postoperative health risk and speeds up the patient recovery. Meanwhile, the pad is waterproof and easy to clean as ultra-sonically welded technology

ON KEY SETTING AND ONE KEY RESET

Flex reflex sitting position and one key reset position with one button for each position that to save the operating time
